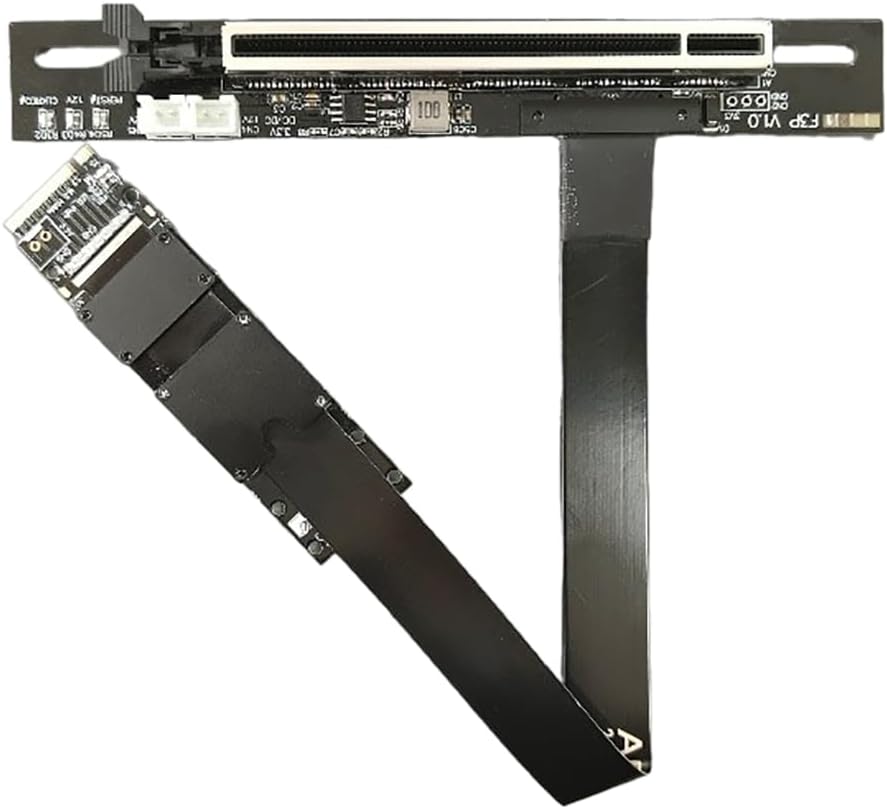

JMT PCIE 5.0 x16 to M.2 NGFF Key M Card Extension Cable 128G/bps GEN5 FCC Cable Compatible with M.2 NVMe Graphics Card (F43SP / 50CM)

JMT PCIE 5.0 x16 to M.2 NGFF Key M Card Extension Cable 128G/bps GEN5 FCC Cable Compatible with M.2 NVMe Graphics Card Option Difference: F43SP: M.2 NVMe-compatible to x16 graphics card extension FFC cable straight version, PCle 5.0 x4. F43SP-TL: M.2 NVMe-compatible to x16 graphics card extension FFC cable to 90 degree left bend version, PCle 5.0 x4. F43SP-TR: M.2 NVMe-compatible to x16 graphics card extension FFC cable to 90 degree right bend version, PCle 5.0 x4. F43SP-TU: M.2 NVMe-compatible to x16 graphics card extension cable FFC to 180 degree reverse version, PCle 5.0 x4. Product Detail: Product model: F43 series Product name: M.2 NVMe-Compatible Key M to PCI-E 5.0X16 extension adapter cable Wire length: 25cm 50cm Speed bandwidth: PCIe 5.0 x4, gen5 128Gps Details of three LED lights: When F43SP is connected and the computer is turned on: PERST # light: Flashing a red light indicates that the system has performed a reset operation. 12V light: The continuous green light indicates that the 12V power supply is in normal working condition. CLKREQ # light: The continuously green light indicates that the clock signal is normal and related functions are in normal working state. About external power supply Need to connect SATA power cord. This device is designed with two power slots, and only one SATA power cord can meet the normal operation requirements of the device. The other slot is mainly designed as a backup or redundancy to cope with some special situations or possible future expansion needs.

• Product name: M.2 NVMe-Compatible Key M to PCI-E 5.0X16 extension adapter cable.
• Speed Bandwidth: PCIe 5.0 x4, gen5 128Gps.
• Accessory Note: Comes with SATA power adapter cable that must be connected to any white socket to provide 12V power.
• Need to Connect SATA Power Cord: This device is designed with two power slots, and only one SATA power cord can meet the normal operation requirements of the device. The other slot is mainly designed as a backup or redundancy to cope with some special situations or possible future expansion needs.
• The FFC cable can be separated at both ends. To avoid insertion and removal losses, FFC cables are only allowed to be disassembled and reassembled 10 times.
